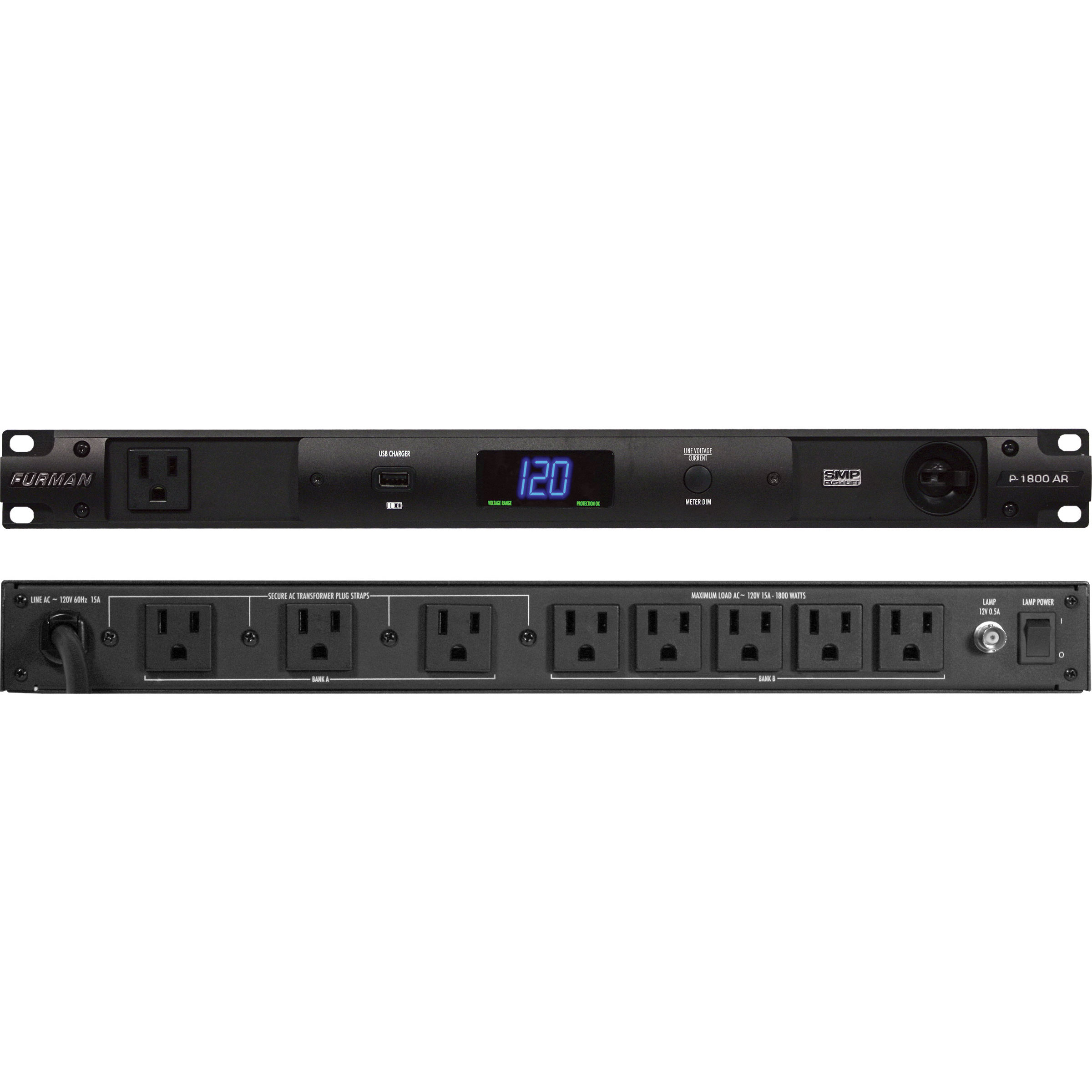

P-1800 AR 15A Prestige Voltage Regulator 120V

P-1800 AR 15A Prestige Voltage Regulator 120V

The 15 Amp P-1800 AR delivers a stable 120 volts of AC power to protect equipment from problems caused by AC line voltage irregularities such as sags, brownouts, or overvoltages - all of which can cause sensitive electronic equipment to malfunction or sustain damage.

The P-1800 AR accepts input voltages over a wide AC voltage range and transforms it to a constant output of 120V, ±5V. Voltages beyond that range may also be converted to usable levels, depending on the range variance.

Additionally, the P-1800 AR is a full-featured power conditioner that filters and purifies AC power, reducing line noise and ensuring optimum performance. Not only will your equipment perform better with Furman’s Linear Filtering Technology (LiFT), but it will also be fully protected by our exclusive Series Multi-Stage Protection (SMP), and Extreme Voltage Shutdown (EVS). This circuitry provides the highest level of power protection available.


Specifications:

General
  • Family: Prestige Series
  • Line Voltage: 120 (Volts)
  • Number of Outlets: 9
  • Number of Isolated Banks: 2
  • Outlet Descriptions: All 9 outlets regulated and conditioned - 8 on the rear panel and 1 on the front
  • Rack-Mountable: Yes
  • Rack Ears Included: Yes
  • Front Panel Meter(s): LED voltmeter/ammeter displays incoming voltage and output current draw
  • Front Media Light(s): No

Control
  • Front panel: On/Off switch / Voltage meter dimmer button
  • Voltage Regulation: Regulation capture range: 97 VAC to 137 VAC
  • Compliance: cETLus
  • USB Charging: 1 front-panel USB charger
  • Low Voltage Trigger: N/A
  • AC Power Cord: 10 ft. captive 3/14 AWG, black cord with NEMA 15 plug
  • Dimensions: 19" W x 12.0" D x 1.75" H
  • Weight: 15 lbs
  • Power Consumption: 5 Watts

AC Protection
  • AC Protection TechnologyTrue RMS Voltage Regulation
  • Extreme Voltage Shutdown
  • Series Multi-Stage Protection
  • Non-sacrificial protection with zero ground contamination
  • Under-Voltage Shutoff90V
  • Over-Voltage Shutoff140 VAC
  • Maximum Current Rating15 (Amps)
  • Initial Clamping Level188 VAC peak @ 3,000 Amps

Filtration
  • Filtration Technology: LiFT
  • Filtration Rating: 10 dB @ 10kHz / 40 dB @ 100kHz / 50 dB @ 500kHz
  • Signal Line Protection: No

Shipping Info
  • Length: 22.6 (Inches)
  • Width: 16.6 (Inches)
  • Height: 4.2 (Inches)
  • Weight: 20.96 (Lbs)
  • Unit of Measure: Each
  • UPC: 654061028130
  • Master Pack Qty: 2
